Brushed DC Motor
Brushed DC motor is characterized by low starting voltages, small losses, high efficiency, perfectly
linear speed-torque behavior, etc.
Shanbo EM has over 1000 models of brushed DC motors for you to choose from.
Motor Selection Range
- Outer diameter: 38-130mm
- Voltage: 6-220VDC
- Speed: 600-8000rpm
- Torque: 0.05-6Nm
- Protection class: IP67
- Operating temperature: -40°C – +70°C
Specifications
-
-
EM70ZY01 Voltage: 24V DC
Torque: 1.0N.m
Speed: 3100RPM
Power: 320W
Current: 22AWorking Duty: S2
Protection Class: IP67Inquiry
-
-

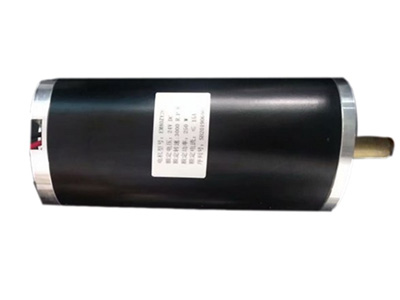

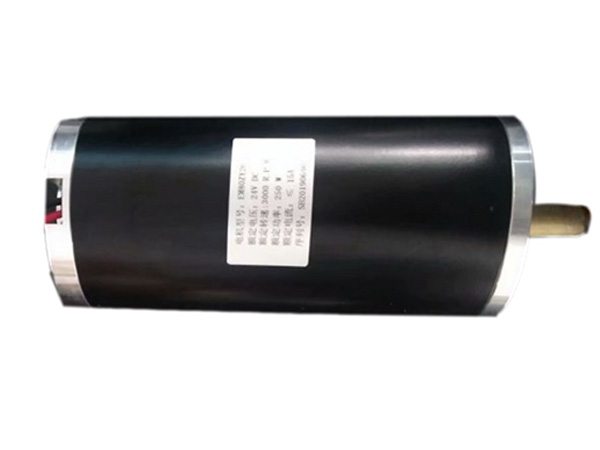

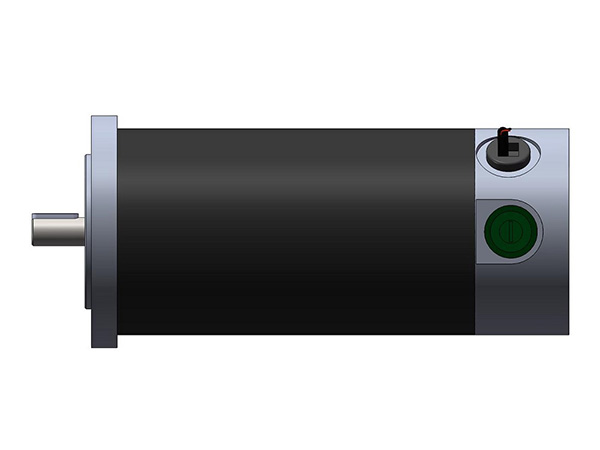

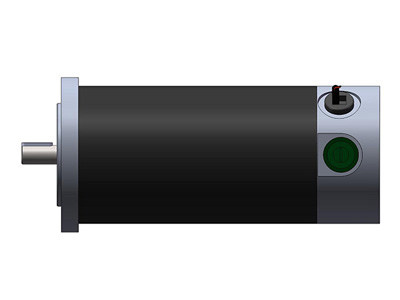

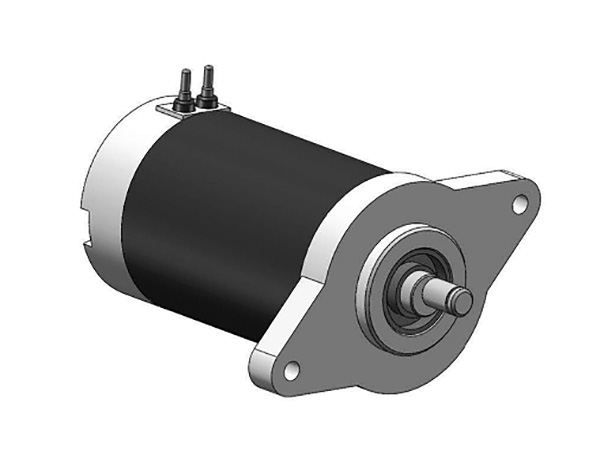

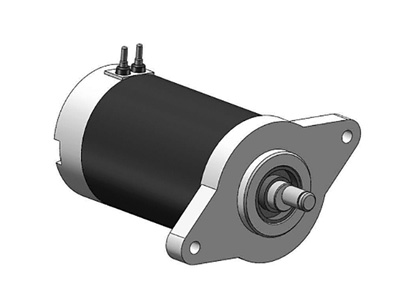

EM80ZY20 Voltage: 24V DC
Torque: 0.8N.m
Speed: 3000RPM
Power: 250W
Current: 15AWorking Duty: S1
Protection Class: IP20Inquiry
-
-
EM80ZY50 Voltage: 24V DC
Torque: 0.78N.m
Speed: 1750RPM
Power: 142W
Current: 8.4AWorking Duty: S1
Protection Class: IP43Inquiry
-
-

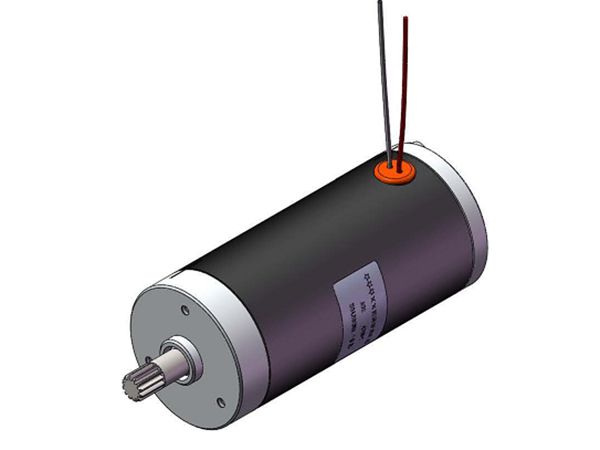

EM38ZY02 Voltage: 24V DC
Torque: 0.115N.m
Speed: 3000RPM
Power: 36W
Current: 2.5A
Working Duty: S2
Protection Class: IP54
Insulation Class: BInquiry
-
-

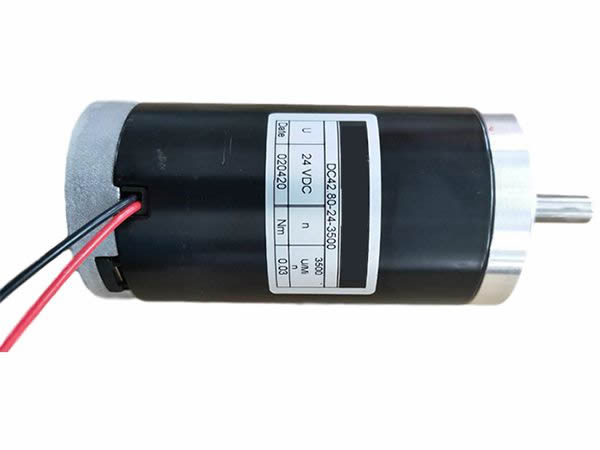

EM42ZY03 Voltage: 24V DC
Torque: 0.03N.m
Speed: 3500RPM
Power: 11W
Current: 0.8A
Working Duty: S1
Protection Class: IP43
Insulation Class: BInquiry
-
-

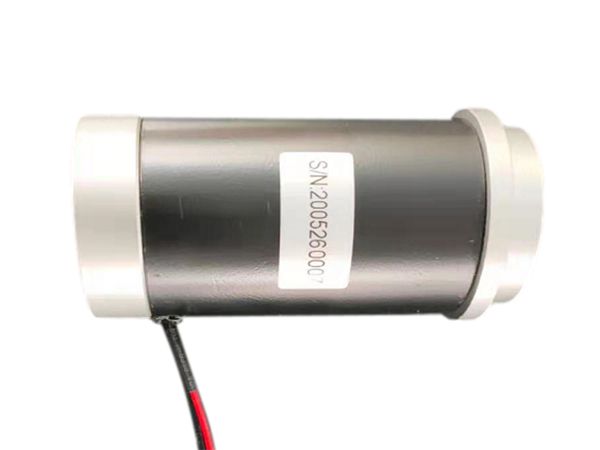

EM44ZY01 Voltage: 24V DC
Torque: 0.13N.m
Speed: 6100RPM
Power: 84W
Current: 5A
Working Duty: S2
Protection Class: IP43
Insulation Class: BInquiry
-
-

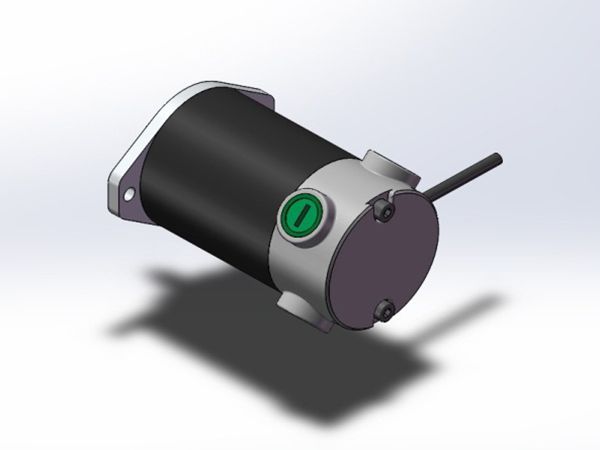

EM64ZY08 Voltage: 110V DC
Torque: 0.57N.m
Speed: 3000RPM
Power: 180W
Current: 2A
Working Duty: S2
Protection Class: IP43
Insulation Class: BInquiry
-
-

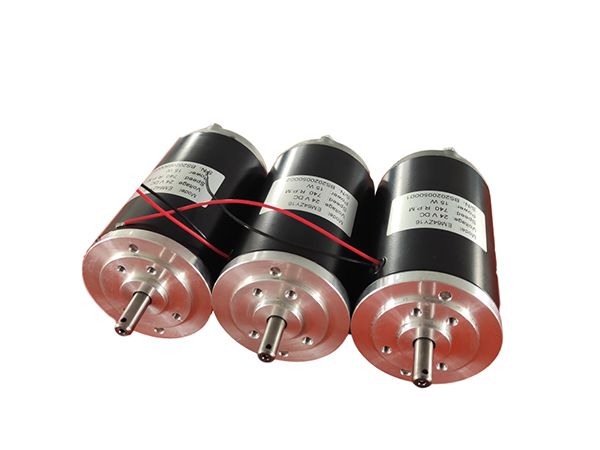

EM64ZY16 Voltage: 24V DC
Torque: 0.2N.m
Speed: 740±10%RPM
Power: 15W
Current: 1.3A
Working Duty: S1
Protection Class: IP50
Insulation Class: BInquiry -
-

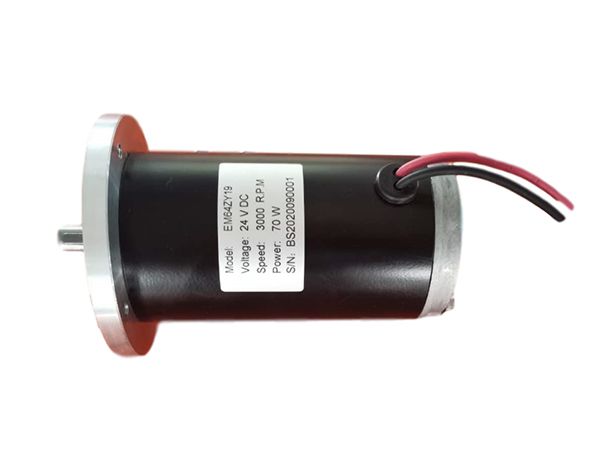

EM64ZY19 Voltage: 24V DC
Torque: 0.22N.m
Speed: 3000RPM
Power: 70W
Current: 4A
Working Duty: S1
Protection Class: IP50
Insulation Class: BInquiry
-
-

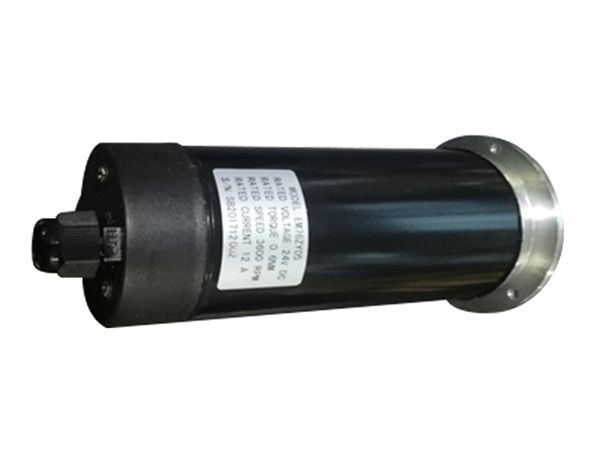

EM76ZY05 Voltage: 24V DC
Torque: 0.6N.m
Speed: 3600RPM
Power: 226W
Current: 12A
Working Duty: S2(2min)
Protection Class: IP67
Insulation Class: BInquiry
-
-
EM76ZY06 Voltage: 48V DC
Torque: 1N.m
Speed: 3600RPM
Power: 377W
Current: 10A
Working Duty: S2(2min)
Protection Class: IP67
Insulation Class: BInquiry
-
-
EM76ZY07 Voltage: 24V DC
Torque: 0.2N.m
Speed: 3500RPM
Power: 74W
Current: 4.5A
Working Duty: S2(2min)
Protection Class: IP67
Insulation Class: BInquiry
-
-

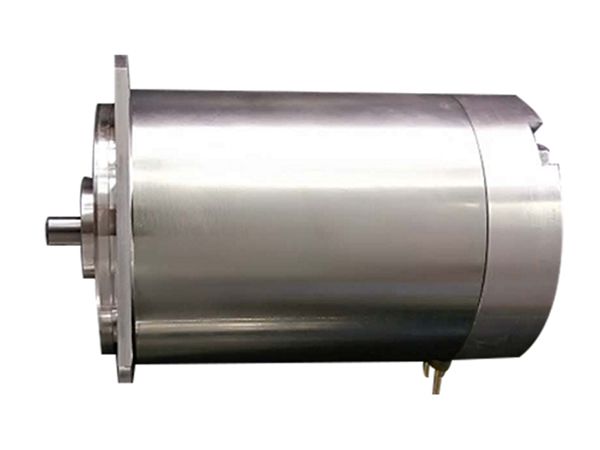

EM78ZY01 Voltage: 24V DC
Torque: 0.85N.m
Speed: 3400±10%RPM
Power: 300W
Current: ≤22A
Working Duty: Intermittent
Protection Class: IP67\IP69K
Insulation Class: FInquiry -
-

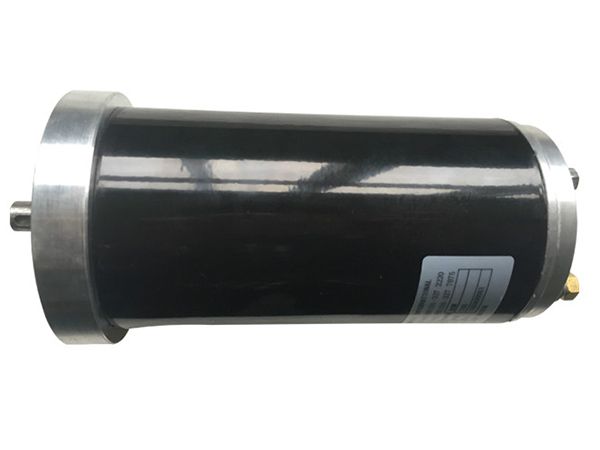

80ZDY01-80W Voltage: 12V DC
Torque: 1.1 N.m
Speed: 700RPM
Power: 80W
Current: 15A
Working Duty: S1
Protection Class: IP 55
Insulation Class: FInquiry
-
-
80ZDY-100W Voltage: 12V DC
Torque: 0.8 N.m
Speed: 1200RPMPower: 100W
Current: 14A
Working Duty: S1
Protection Class: IP 55
Insulation Class: FInquiry
-
-
80ZDY-100W Voltage: 12V 24V DC
Torque: 0.3 N.m
Speed: 3000±10%
Power: 100W
Current: 13/6A
Working Duty: S1
Protection Class: IP 44
Insulation Class: FInquiry
-
-
80ZDY-140W Voltage: 12V 24V DC
Torque: 0.45 N.m
Speed: 3000±10%
Power: 140W
Current: 17/8A
Working Duty: S2
Protection Class: IP 44
Insulation Class: FInquiry
-
-
80ZDY-180W Voltage: 12V 24V DC
Torque: 0.57 N.m
Speed: 3000±10%
Power: 180W
Current: 22/10A
Working Duty: S1
Protection Class: IP 44
Insulation Class: FInquiry
-
-
80ZDY-250W Voltage: 12V 24V DC
Torque: 0.8 N.m
Speed: 3000±10%
Power: 250W
Current: 31/15A
Working Duty: S2
Protection Class: IP 44
Insulation Class: FInquiry
-
-

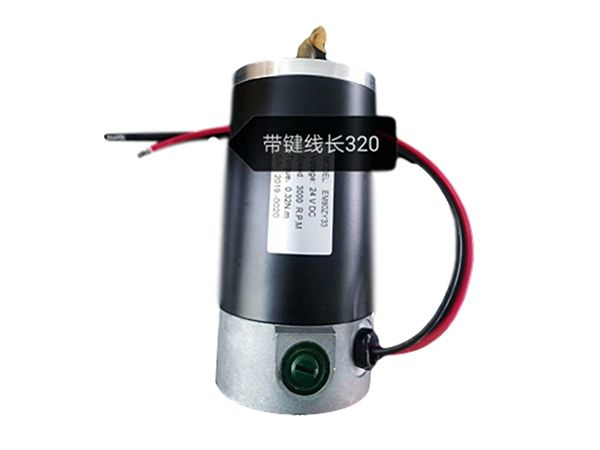

EM80ZY33 Voltage: 24 DC
Torque: 0.32N.m
Speed: 3000RPM
Power: 100W
Current: ≤6A
Working Duty: S1
Protection Class: IP53
Insulation Class: BInquiry
-
-
EM80ZY34 Voltage: 24 DC
Torque: 0.64N.m
Speed: 1500RPM
Power: 100W
Current: ≤6A
Working Duty: S1
Protection Class: IP53
Insulation Class: BInquiry
-
-

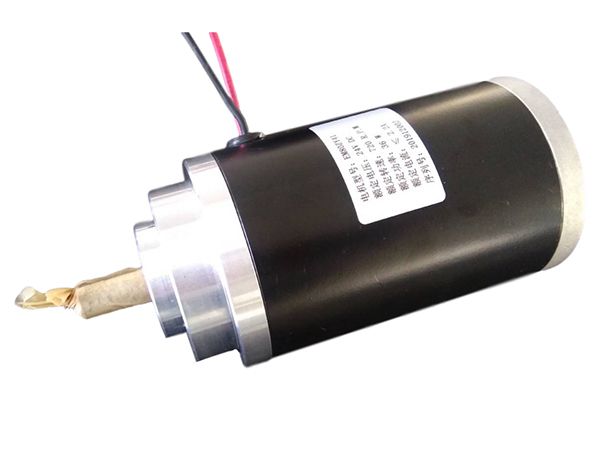

EM80ZY41 Voltage: 24V DC
Torque: 0.6N.m
Speed: 600±10%RPM
Power: 38W
Current: 2.2 A
Working Duty: S1
Protection Class: IP50
Insulation Class: BInquiry
-
-

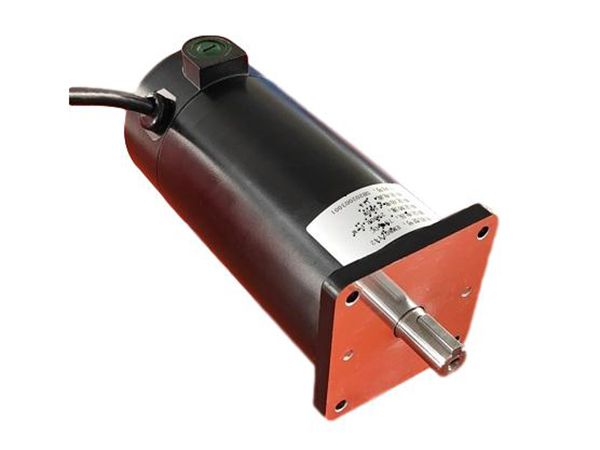

EM80ZY42 Voltage: 75V DC
Torque: 2.1N.m
Speed: 3150±10%RPM
Power: 690W
Current: 13A
Working Duty: S2
Protection Class: IP44
Insulation Class: BInquiry
-
-

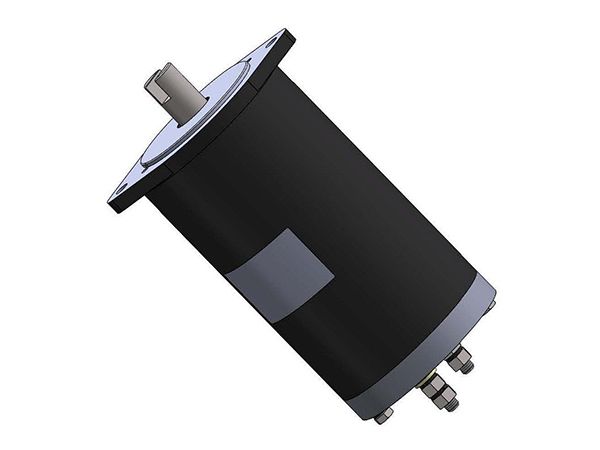

EM80ZY48 Voltage: 24V DC
Torque: 1.7N.m
Speed: 4500RPM
Power: 800W
Current: ＜50A
Working Duty: S2
Protection Class: IP54
Insulation Class: FInquiry
-
-
EM84ZY04 Voltage: 12V DC
Torque: 1.15N.m
Speed: 1500RPM
Power: 180W
Current: 22A
Working Duty: S3
Protection Class: IP55
Insulation Class: BInquiry -
-
90ZDY01 Voltage: 12V DC
Torque: 1.52N.m
Speed: 3400±10%
Power: 540W
Current: 70A
Working Duty: S2(2min)
Protection Class: IP 65
Insulation Class: FInquiry
-
-

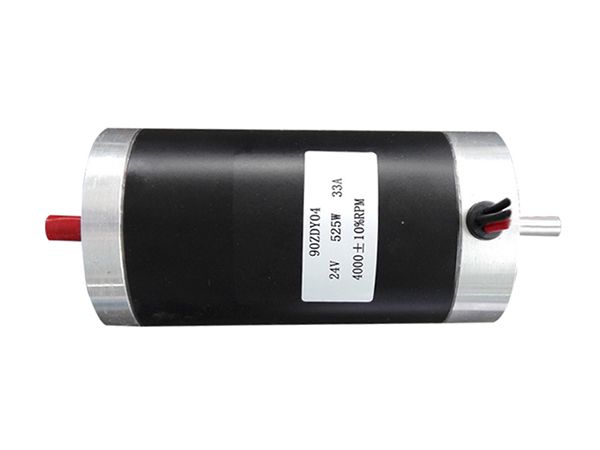

90ZDY04 Voltage: 24V DC
Torque: 1.3N.m
Speed: 4000±10%
Power: 525W
Current: 33A
Working Duty: S2(5min)
Protection Class: IP 54
Insulation Class: FInquiry
-
-
90ZDY05 Voltage: 24V DC
Torque: 1.9N.m
Speed: 3000±10%
Power: 590W
Current: 37A
Working Duty: S2(5min)
Protection Class: IP 54
Insulation Class: FInquiry
-
-

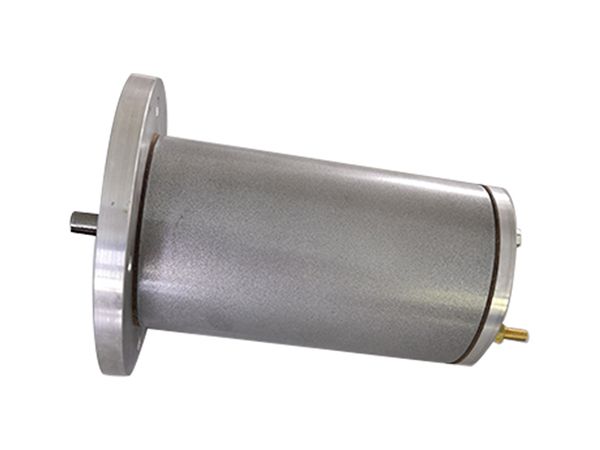

EM90ZY15 Voltage: 12VDC
Torque: 1.76N.m
Speed: 3400RPM
Power: 627W
Current: ≤75A
Working Duty: S2
Protection Class: IP65
Insulation Class: FInquiry
-
-

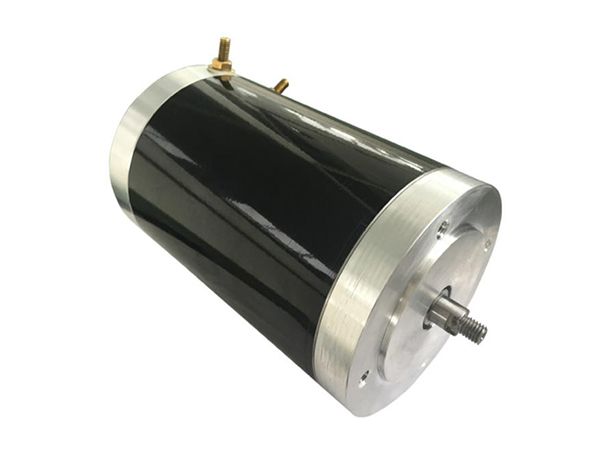

105ZDY01 Voltage: 12V DC
Torque: 0.76N.m
Speed: 3800±10%
Power: 300W
Current: 42A
Working Duty: S1
Protection Class: IP 54
Insulation Class: FInquiry
-
-
105ZDY02 Voltage: 12V DC
Torque: 0.76N.m
Speed: 3800±10%
Power: 300W
Current: 40A
Working Duty: S1
Protection Class: IP 54
Insulation Class: FInquiry
-
-

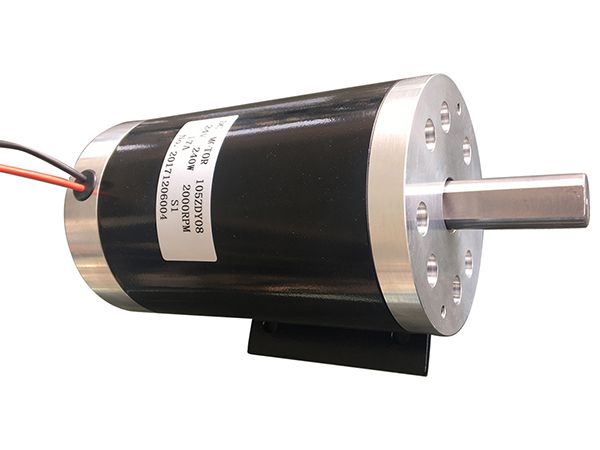

105ZDY08 Voltage: 24V DC
Torque: 1.15N.m
Speed: 2000RPM
Power: 240W
Current: 17A
Working Duty: S1
Protection Class: IP53
Insulation Class: FInquiry
-
-

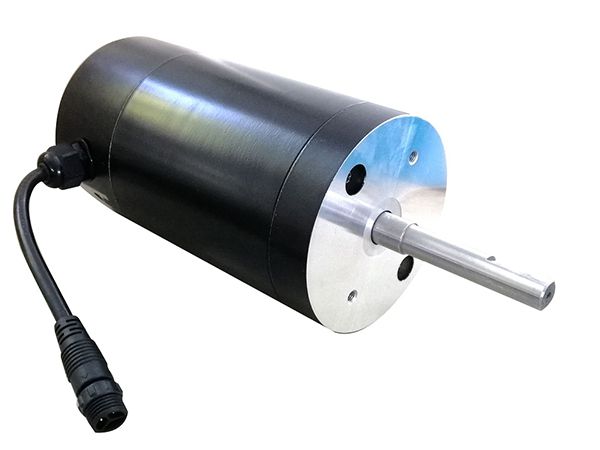

EM110ZY68 Voltage: 115 DC
Torque: 1.8N.m
Speed: 2800RPM
Power: 550W
Current: ≤6A
Working Duty: S3
Protection Class: IP53
Insulation Class: FInquiry
-
-
EM110ZY70 Voltage: 220 DC
Torque: 1.8N.m
Speed: 2800RPM
Power: 550W
Current: ≤4A
Working Duty: S3
Protection Class: IP53
Insulation Class: FInquiry
-
-
EM110ZY71 Voltage: 120 DC
Torque: 2.6N.m
Speed: 1850RPM
Power: 550W
Current: ≤6A
Working Duty: S3
Protection Class: IP53
Insulation Class: FInquiry
-
-

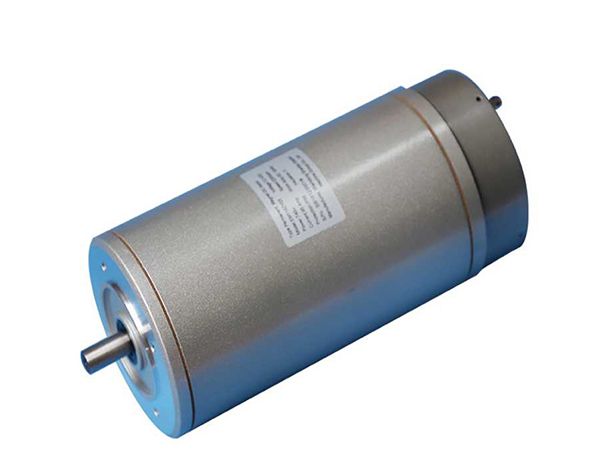

EM118ZY03 Voltage: 12V DC
Torque: 3N.m
Speed: 2200RPM
Power: 710W
Current: 85A
Working Duty: S2
Protection Class: IP65
Insulation Class: BInquiry
-
-
EM118ZY04 Voltage: 120V DC
Torque: 3N.m
Speed: 3600RPM
Power: 1100W
Current: 12A
Working Duty: S2
Protection Class: IP65
Insulation Class: BInquiry
-
-

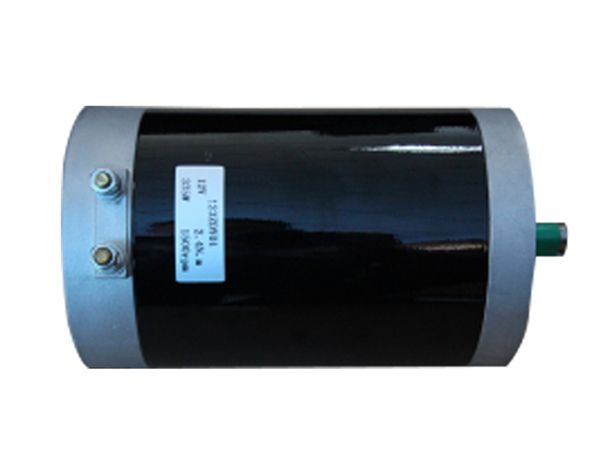

123ZDY02 Voltage: 12V
Torque: 2N.m
Speed: 3700RPM
Power: 760W
Current: 90A
Working Duty: S2
Protection Class: IP 54
Insulation Class: FInquiry
-
-
123ZDY10 Voltage: 24V
Torque: 1.6 N.m
Speed: 3200RPM
Power: 550W
Current: 37A
Working Duty: S2
Protection Class: IP 54
Insulation Class: FInquiry
-
-
123ZDY05 Voltage: 48V
Torque: 1.8N.m
Speed: 3000±10%
Power: 560W
Current: 18A
Working Duty: S1
Protection Class: IP 56
Insulation Class: FInquiry
-
-
123ZDY03 Voltage: 24V
Torque: 2.5N.m
Speed: 4000RPM
Power: 1100W
Current: 70A
Working Duty: S2
Protection Class: IP 54
Insulation Class: FInquiry
-
-
123ZDY08 Voltage: 12V
Torque: 1N.m
Speed: 1500RPM
Power: 350W
Current: 50A
Working Duty: S2
Protection Class: IP 54
Insulation Class: FInquiry
-
-
123ZDY09 Voltage: 24V
Torque: 1.9 N.m
Speed: 2800±10%
Power: 560W
Current: 36A
Working Duty: S1
Protection Class: IP 56
Insulation Class: FInquiry
-
-
123ZDY01 Voltage: 12V
Torque: 1N.m
Speed: 4800RPM
Power: 500W
Current: 70A
Working Duty: S2
Protection Class: IP 54
Insulation Class: FInquiry
-
-
EM142ZY01 Voltage: 120V DC
Torque: 3.5N.m
Speed: 3000RPM
Power: 1100W
Current: 15A
Working Duty: S2-30min
Protection Class: IP2X
Insulation Class: FInquiry
Beside, Shanbo EM is able to offer custom made brushed DC motors per customer’s specific needs. We can do the job with results satisfying or beyond the expectations of our customers. Required parameters from customer are as follows:
- Shaft
- Installation sizes
- Performance data
- Protection class
- Application environment
- Lead wire
- Connectors
As an experienced electric motor manufacturer, Shanbo EM offers the best electric motion solutions to meet customers’ individual requirements. Our knowledge of motor manufacturing is based on our experience in production and delivery of over 1000 types of various custom electric motors and motion control products for automation equipment. Our team of enthusiastic people is continually developing innovative solutions in brushed motor and brushless motor technology to serve various applications in aerospace, automobile, industrial robot, automation, printing, packaging, medical devices, logistics, etc. We also provide an extensive line of industrial gearboxes and gearmotors including right angle gearboxes, helical gearboxes, and worm gearboxes. Our electric motor production plant comes fully equipped for manufacturing customized industrial motors to meet the demands on today’s industrial automation and motion control industry.InquiryOther Products
-
-
-
