Parallel Shaft Geared Motor

Parallel shaft geared motor utilizes spur gear that transmits torque between two parallel shafts, featuring low friction losses, improved tooth strength and high torque density. Parallel shaft gearbox can be equipped with different brushed and brushless DC motors, it can operate better in applications where smaller load and stable motion are mandatory. Shanbo EM can offer custom-specific parallel shaft speed reducer solutions by configuring various motors.

Motor Selection Range

  • Gear ratios: 3-400:1
  • Torque: 400Nm
  • Protection class: IP67
  • Operating temperature: -40°C – +70°C

Specifications

  • Parallel Shaft Geared Motor

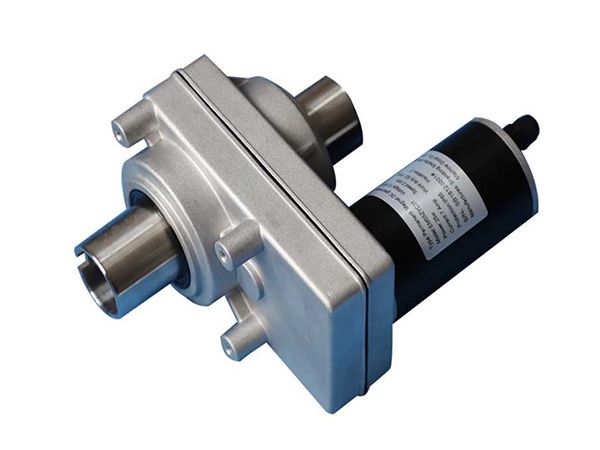

  • EM55ZYC01

    Voltage: 12V DC
    Torque: 68N.m
    Speed: 0.6RPM
    Power: 4W
    Current: 1.5A
    Working Duty: S2
    Protection Class: IP65
    Other: ratio: 869:1
    Inquiry
  • Parallel Shaft Geared Motor

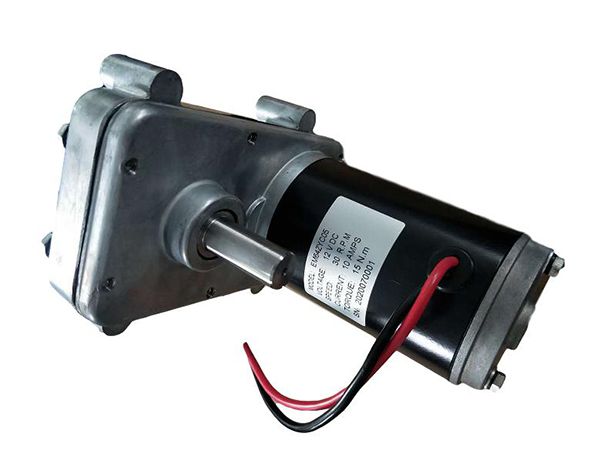

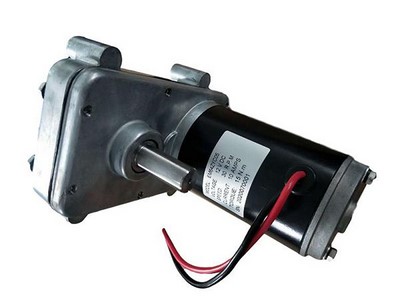

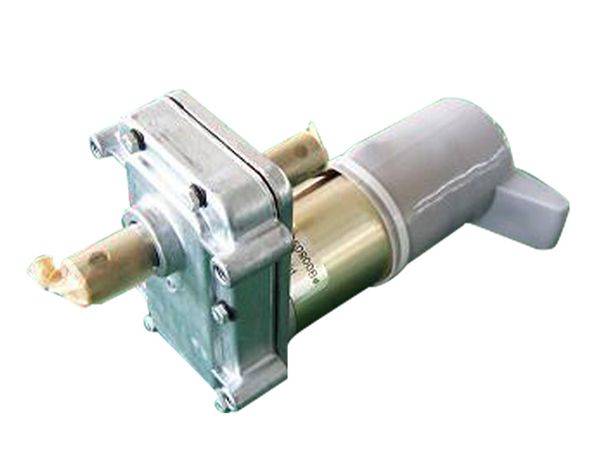

  • EM64ZYC05

    Voltage: 12V DC
    Torque: 15N.m
    Speed: 30RPM
    Power: 47W
    Current: 10A
    Working Duty: S2
    Protection Class: IP50
    Other: ratio: 30.86:1
    Inquiry
  • Parallel Shaft Geared Motor

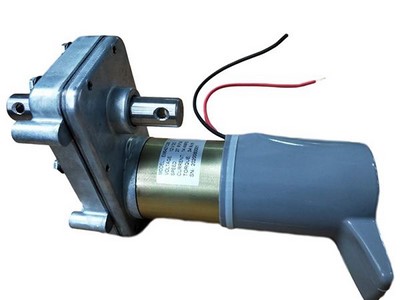

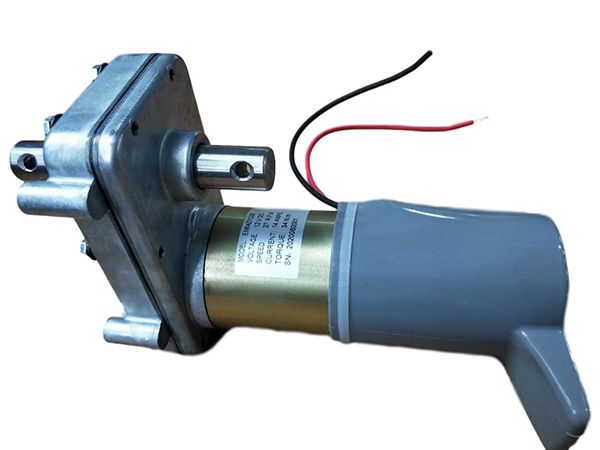

  • EM64ZYC06

    Voltage: 12V DC
    Torque: 34N.m
    Speed: 27RPM
    Power: 96W
    Current: 14A
    Working Duty: S2
    Protection Class: IP 54
    Other: ratio: 30.86:1
    Inquiry
  • Parallel Shaft Geared Motor
  • EM64ZYC01

    Voltage: 12V DC
    Torque: 300IN·LBS
    Speed: 15RPM
    Current: 15 A
    Working Duty: S2
    Protection Class: IP 54
    Other: ratio: 130.86:1
    Inquiry
  • Parallel Shaft Geared Motor
  • EM64ZYC02

    Voltage: 12V DC
    Torque: 850IN·LBS
    Speed: 8.5RPM
    Current: 19 A
    Working Duty: S2
    Protection Class: IP 54
    Other: ratio: 162.7:1
    Inquiry
  • Parallel Shaft Geared Motor
  • EM64ZYC08

    Voltage: 12V DC
    Torque: 400IN·LBS
    Speed: 8.5RPM
    Current: 7.5 A
    Working Duty: S2
    Protection Class: IP 54
    Other: ratio: 415:1
    Inquiry
  • EM64ZYC14
  • EM64ZYC14

    Voltage: 12V DC
    Torque: 32N.m
    Speed: 12RPM
    Power: 40W
    Current: 8A
    Working Duty: S1
    Protection Class: IP66
    Inquiry
  • Parallel Shaft Geared Motor

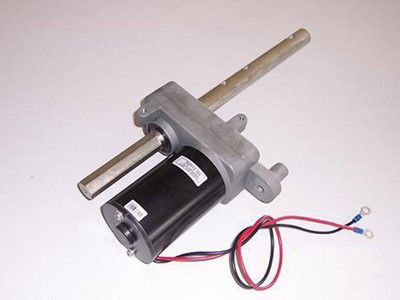

  • EM76ZYC01

    Voltage: 12V DC
    Torque: 15FT-LBS
    Speed: 32RPM
    Current: 11A
    Working Duty: S2
    Protection Class: IP54 - 55
    Other: ratio: 99.93: 1
    Inquiry
  • Parallel Shaft Geared Motor
  • EM76ZYC02

    Voltage: 12V DC
    Torque: 45FT-LBS
    Speed: 25RPM
    Current: 34A
    Working Duty: S2
    Protection Class: IP54 - 55
    Other: ratio: 54.15: 1
    Inquiry
  • Parallel Shaft Geared Motor
  • EM76ZYC03

    Voltage: 12V DC
    Torque: 18.75FT-LBS
    Speed: 32RPM
    Current: 15A
    Working Duty: S2
    Protection Class: IP54 - 55
    Other: ratio: 99.93: 1
    Inquiry
  • Parallel Shaft Geared Motor
  • EM76ZYC04

    Voltage: 24V DC
    Torque: 18.75FT-LBS
    Speed: 32RPM
    Current: 8A
    Working Duty: S2
    Protection Class: IP54 - 55
    Other: ratio: 99.93: 1
    Inquiry
  • Parallel Shaft Geared Motor

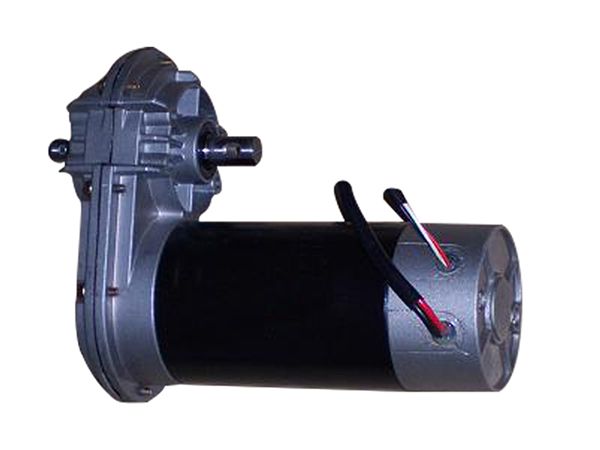

  • EM80ZYC03

    Voltage: 12V DC
    Torque: 4.72 N.m
    Speed: 395RPM
    Current: 30V
    Working Duty: S2
    Protection Class: IP54
    Other: 6:1
    Inquiry
  • Parallel Shaft Geared Motor

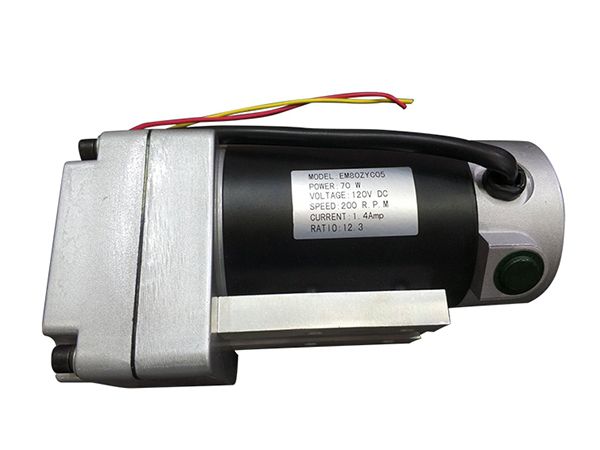

  • EM80ZYC05

    Voltage: 120V
    Torque: 3.2 N.m
    Speed: 180rpm
    Current: 1.4A
    Working Duty: S2
    Protection Class: IP54
    Other: 12.308:1
    Inquiry
  • Parallel Shaft Geared Motor
  • 84ZYC01

    Voltage: 12V DC
    Torque: 45.2 N.m
    Speed: 15RPM
    Current: 15A
    Working Duty: S2
    Protection Class: IP54
    Other: 107.8:1
    Inquiry
  • Parallel Shaft Geared Motor

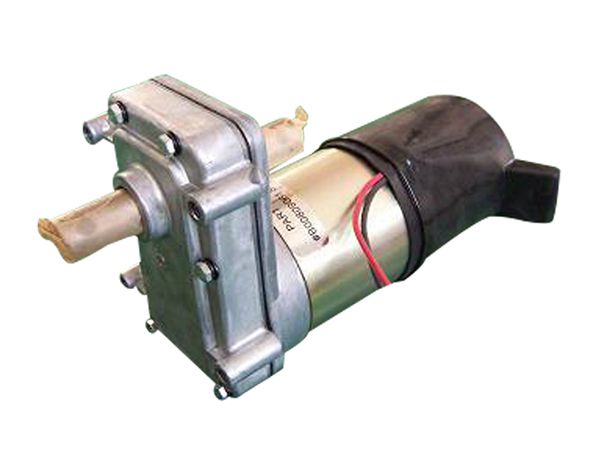

  • EM84ZYC03

    Voltage: 12V DC
    Torque: 45.2 N.m
    Speed: 35RPM
    Current: 28A
    Working Duty: S2
    Protection Class: IP65
    Other: 69.74:1
    Inquiry
  • Parallel Shaft Geared Motor

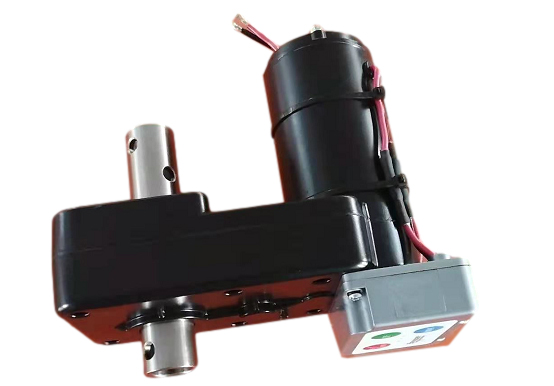

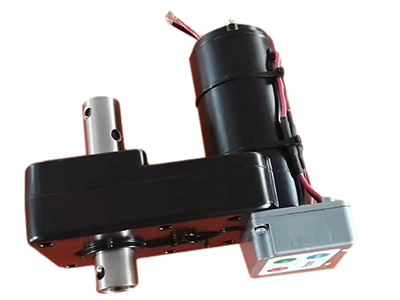

  • EM84ZYC09

    Voltage: 12VDC
    Torque: 80N.m
    Speed: 25RPM
    Power: 210W
    Current: ≤32A
    Working Duty: S2-3min
    Protection Class: IP66
    Inquiry
  • Parallel Shaft Geared Motor
  • EM84ZYC11

    Voltage: 12VDC
    Torque: 100N.m
    Speed: 22RPM
    Power: 230w
    Current: ≤35A
    Working Duty: S2-3min
    Protection Class: IP66
    Inquiry
  • Parallel Shaft Geared Motor

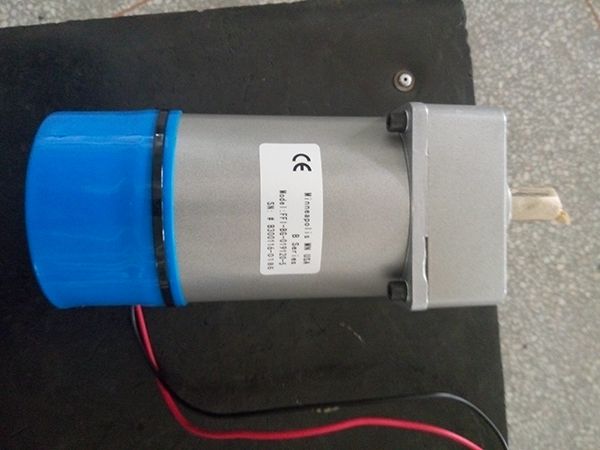

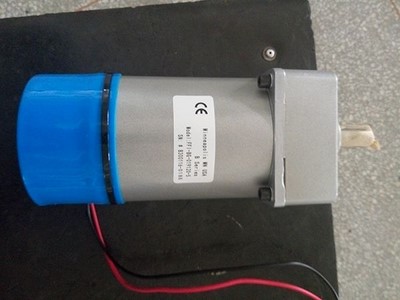

  • EM104ZYC01

    Voltage: 120VDC
    Torque: 10.8 N.m
    Speed: 310rpm
    Power: 350W
    Current: 4.5A
    Working Duty: S2
    Protection Class: IP54
    Other: 5: 1
    Inquiry
  • Parallel Shaft Geared Motor
  • EM104ZYC02

    Voltage: 12VDC
    Torque: 11.14 N.m
    Speed: 300rpm
    Power: 350W
    Current: 43.5A
    Working Duty: S2
    Protection Class: IP54
    Other: 10:1
    Inquiry
  • Parallel Shaft Geared Motor

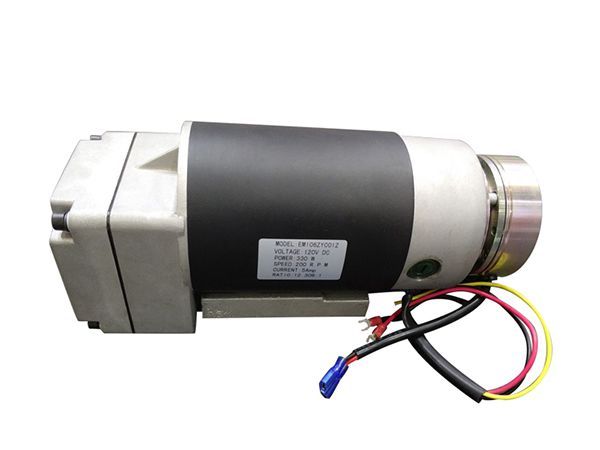

  • EM106ZYC01

    Voltage: 120V
    Torque: 15.7N.m
    Speed: 180rpm
    Current: 4.2A
    Working Duty: S2
    Protection Class: IP54
    Other: 12.308:1
    Inquiry
View More
As an experienced electric motor manufacturer, Shanbo EM offers the best electric motion solutions to meet customers’ individual requirements. Our knowledge of motor manufacturing is based on our experience in production and delivery of over 1000 types of various custom electric motors and motion control products for automation equipment. Our team of enthusiastic people is continually developing innovative solutions in brushed motor and brushless motor technology to serve various applications in aerospace, automobile, industrial robot, automation, printing, packaging, medical devices, logistics, etc. We also provide an extensive line of industrial gearboxes and gearmotors including right angle gearboxes, helical gearboxes, and worm gearboxes. Our electric motor production plant comes fully equipped for manufacturing customized industrial motors to meet the demands on today’s industrial automation and motion control industry.
