Planetary Gearmotor
Planetary gearbox is a type of gearbox where the input and output shafts are aligned, it is employed to transmit the largest torque in the most compact form, known as torque density, particularly useful for large loads applications. The planetary gearbox can be combined with different brushed and brushless DC motors. Shanbo EM can offer custom-specific planetary gearmotor solutions by assembling various motors and planetary gearboxes.
Motor Selection Range
- Gear ratios: 3-864:1
- Torque: 600Nm
- Protection class: IP67
- Operating temperature: -40°C – +70°C
Specifications
-
-

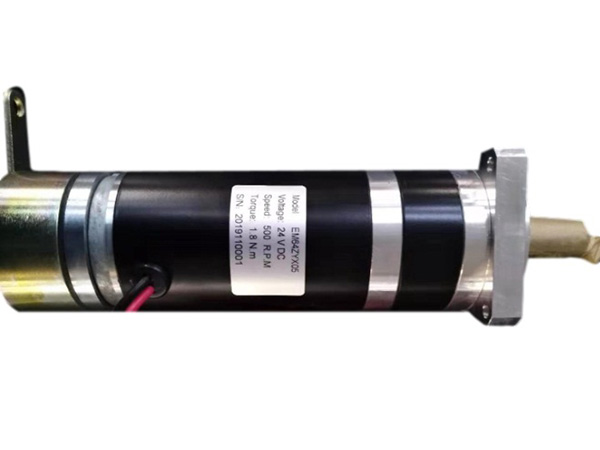

EM64ZYX05 Voltage: 24V DC
Torque: 1.8N.m
Speed: 500RPM
Power: 94W
Current: 7.5AWorking Duty: S2
Protection Class: IP54Inquiry
-
-
Voltage: 36V DC
Torque: 1.3N.m
Speed: 470RPM
Power: 64W
Current: 10AWorking Duty: S2
Protection Class: IP54Inquiry
-
-
EM42ZYX14 Voltage: 24V DC
Torque: 20N.m
Speed: 5RPM
Power: 10.5W
Current: 2A
Working Duty: S2
Protection Class: IP44
Insulation Class: 504:1Inquiry
-
-

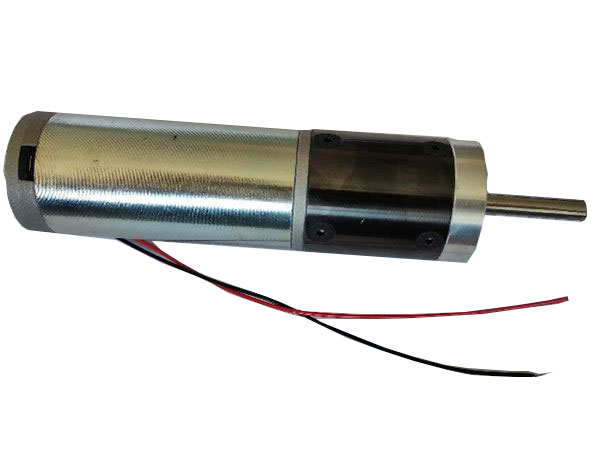

EM42ZYX03 Voltage: 12V DC
Torque: 5.6N.m
Speed: 30RPM
Power: 18W
Current: 4A
Working Duty: S2
Insulation Class: 56:1Inquiry
-
-
Voltage: 24V DC
Torque: 70N.m
Speed: 8RPM
Power: 58W
Current: 6AWorking Duty: S2
Protection Class: IP54Inquiry
-
-

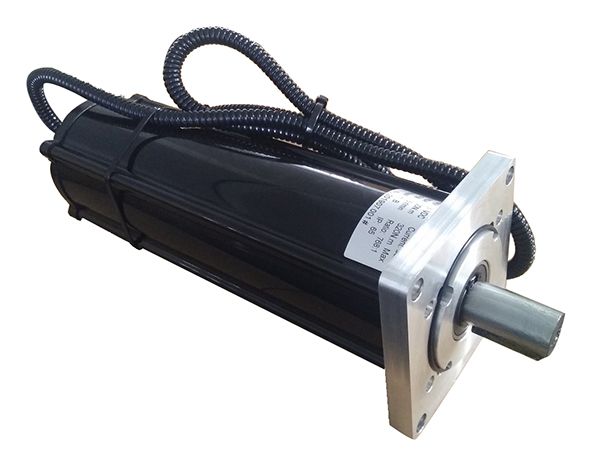

EM78ZYX01 Voltage: 24 DC
Torque: 300N.m
Speed: 1.5RPM
Power: 47W
Current: ≤6.4A
Working Duty: S1
Protection Class: IP65
Insulation Class: 768:1Inquiry
-
-
EM78ZYX02 Voltage: 28 DC
Torque: 200N.m
Speed: 1.5RPM
Power: 32W
Current: ≤3A
Working Duty: S1
Protection Class: IP65
Insulation Class: 768:1Inquiry
-
-
EM78ZYX03 Voltage: 28 DC
Torque: 300N.m
Speed: 0.875RPM
Power: 28W
Current: ≤3.2A
Working Duty: S1
Protection Class: IP65
Insulation Class: 768:1Inquiry -
-

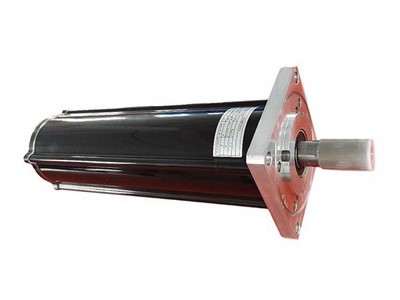

EM80ZYX03 Voltage: 24V DC
Torque: 120 N.m
Speed: 9.8±10%RPMPower: 125W
Current: 10A
Working Duty: S2
Protection Class: IP65
Insulation Class: 144:1Inquiry
-
-

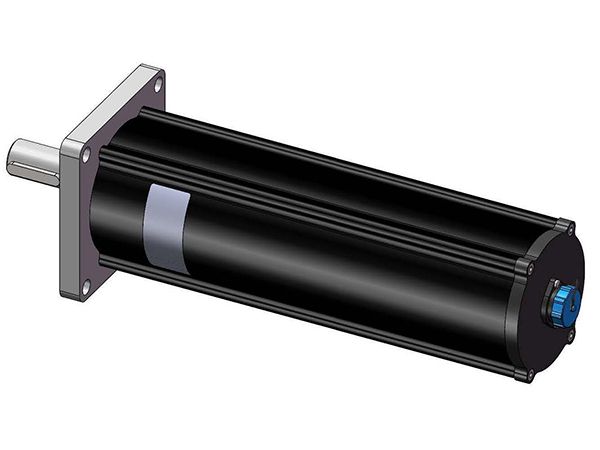

EM80ZYX04 Voltage: 48V DC
Torque: 170N.m
Speed: 10RPM
Power: 180W
Current: 6.5A
Working Duty: S2
Protection Class: IP65
Insulation Class: 144:1Inquiry
-
-
Voltage: AC220V
Torque: 150N.m
Speed: 8RPM
Power: 125W
Current: 4.5AWorking Duty: S2
Protection Class: IP55Inquiry
-
-

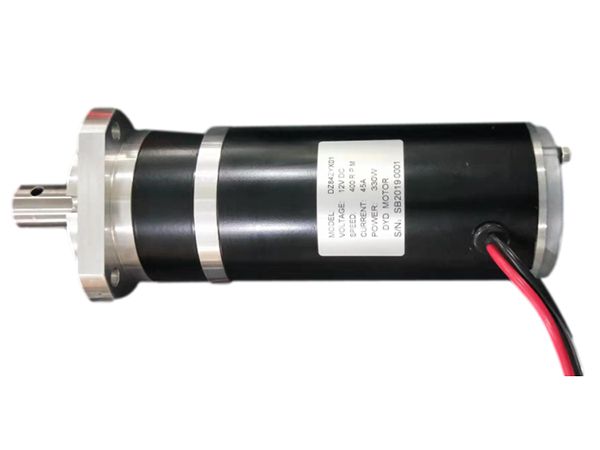

EM84ZYX01 Voltage: 12V DC
Torque: 8N.m
Speed: 400RPM
Power: 330W
Current: 45A
Working Duty: S2
Protection Class: IP43
Insulation Class: 6.75:1Inquiry
-
-
Voltage: AC380V
Torque: 100N.m
Speed: 88RPM
Power: 920 W
Current: 2.6AWorking Duty: S2
Protection Class: IP55Inquiry
-
-

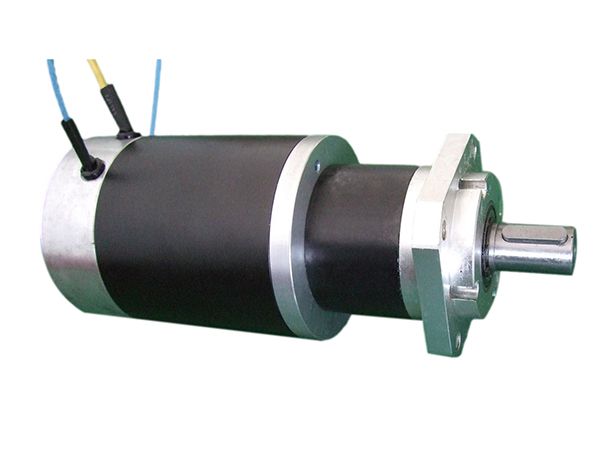

EM112ZYX01 Voltage: 26 DC
Torque: 53N.m
Speed: 55RPM
Power: 300W
Current: ≤23A
Working Duty: S3
Protection Class: IP54
Insulation Class: 46:1Inquiry
