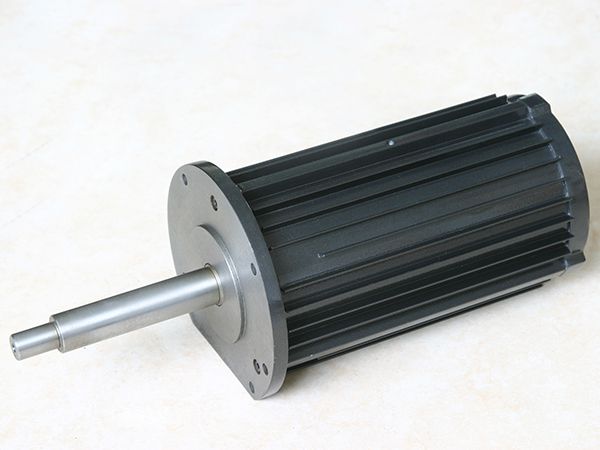

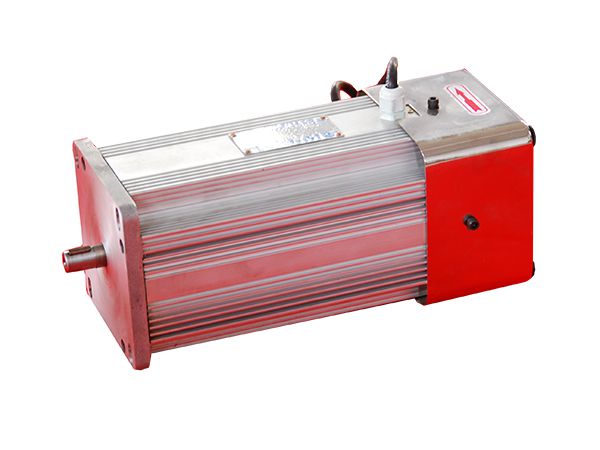

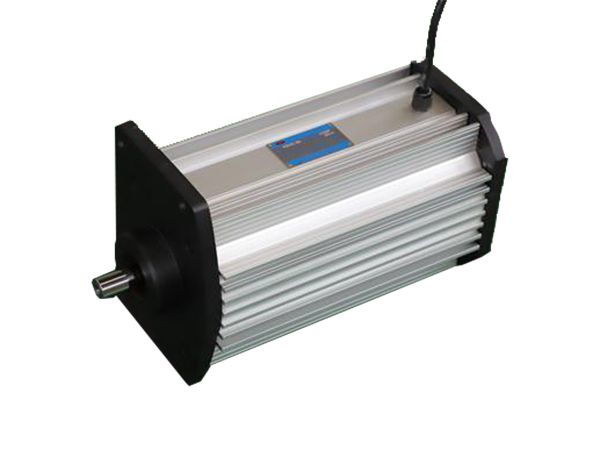

Take-up Winder Motor (for Yarn Spinning)

In response to the increased market demands, Shanbo EM provides newly and independently developed motors particularly used in take-up winder of yarn spinning line. Based on our rich experience and professional expertise in motor designing and manufacturing, these motors are optimized in design through finite element analysis, making the magnetic field distributions more reasonable while guaranteeing high consistency between simulation and experimental results. Besides, we also fully consider energy saving and emission reduction, the premise is to ensure that the optimization satisfies the requirements of yarn spinning process. High grade cold rolled silicon steel is adopted to increase motor efficiency, which can reach up to 93%-95%, with improvements of precise dynamic balance, stable running at high speed, as well as greatly lowered noise level. Utilizing 3D structure simulation software enables the mechanical structure to be more reasonable. With the insulation class of H, these motors are suitable for working environment in chemical fiber plants.

  • Motor for Take-up Winder Chuck, YFZH100L-2B4/YFJT100L-2A/B/JW15-7/JW1260-4/6
  • Motor for Take-up Winder Chuck, YFZH100L-2B4/YFJT100L-2A/B/JW15-7/JW1260-4/6

    Features
    Good starting performance;
    Adjustable speed;
    High torque;
    Low noise level;
    Motor Selection Range
    Speed: 1980r/min-19500r/min
    Insulation class: H
    Inquiry
  • Motor for Winder Traverse Unit, YFHD56-2P/F/JW9-0.8/1.1/12/YFBC63-4
  • Motor for Winder Traverse Unit, YFHD56-2P/F/JW9-0.8/1.1/12/YFBC63-4

    Features
    Quick response;
    Stable running at either low or high speed;
    Compact structure, small size, lightweight;
    Motor Selection Range
    Speed: 460r/min-17700r/min
    Insulation class: H
    Inquiry
  • Motor for Winder Touch Roller, YFZH90-2T/YFMC80M-2/JWMC48-2
  • Motor for Winder Touch Roller, YFZH90-2T/YFMC80M-2/JWMC48-2

    Features
    Adopting high grade cold rolled silicon steel, high efficiency;
    Precise dynamic balance;
    Stable running at high speed;
    Low noise level;
    Motor Selection Range
    Speed: 2340r/min-23770r/min
    Insulation class: H
    Inquiry
As an experienced electric motor manufacturer, Shanbo EM offers the best electric motion solutions to meet customers’ individual requirements. Our knowledge of motor manufacturing is based on our experience in production and delivery of over 1000 types of various custom electric motors and motion control products for automation equipment. Our team of enthusiastic people is continually developing innovative solutions in brushed motor and brushless motor technology to serve various applications in aerospace, automobile, industrial robot, automation, printing, packaging, medical devices, logistics, etc. We also provide an extensive line of industrial gearboxes and gearmotors including right angle gearboxes, helical gearboxes, and worm gearboxes. Our electric motor production plant comes fully equipped for manufacturing customized industrial motors to meet the demands on today’s industrial automation and motion control industry.
