Helical Worm Geared Motor
Helical worm geared motor is often preferred in applications where space is very limited and a right-angle arrangement is required, it offers high efficiency, quiet running and exceptional load carrying capacity. The helical worm gearbox can be combined with different brushed and brushless DC motors. Shanbo EM can offer custom-specific helical worm speed reducer solutions by configuring various motors.
Motor Selection Range
- Gear ratios: 3-100:1
- Torque: 400Nm
- Protection class: IP67
- Operating temperature: -40°C – +70°C
Specifications
-
-

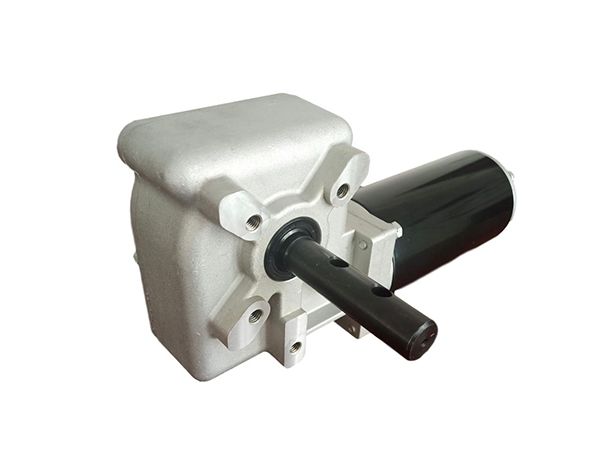

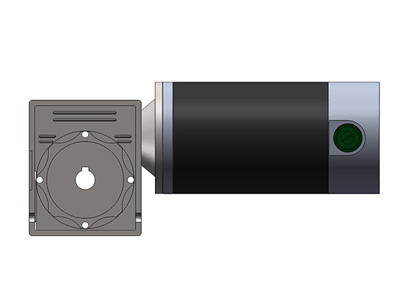

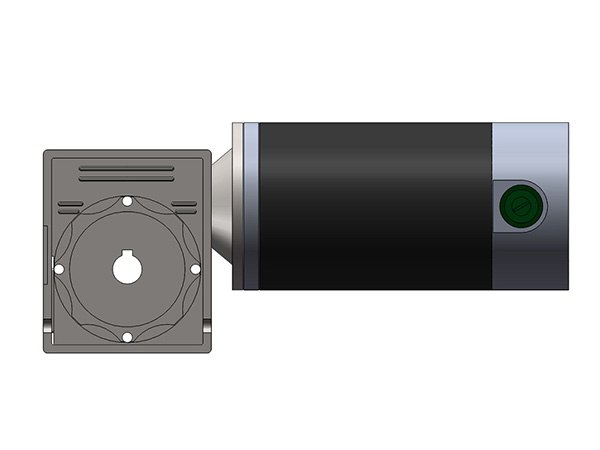

EM80ZYW15A Voltage: 24V DC
Torque: 12N.m
Speed: 37.5RPM
Power: 150W
Current: 9.2A
Working Duty: S2
Protection Class: IP43Inquiry
-
-

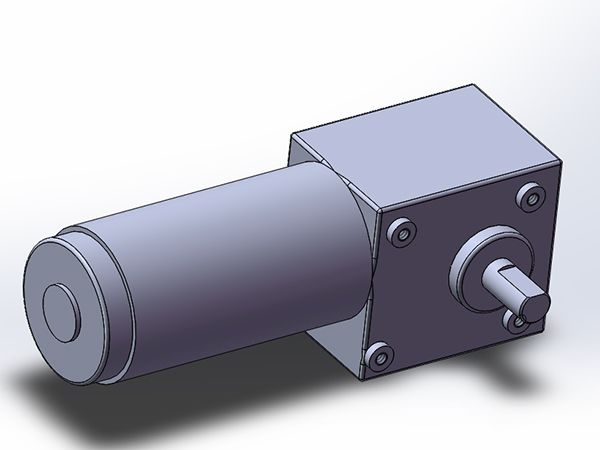

EM44ZYW01 Voltage: 24V DC
Torque: 2.5N.m
Speed: 80RPM
Power: 21W
Current: 3.5A
Working Duty: S2
Protection Class: IP40
Insulation Class: 40:1Inquiry
-
-

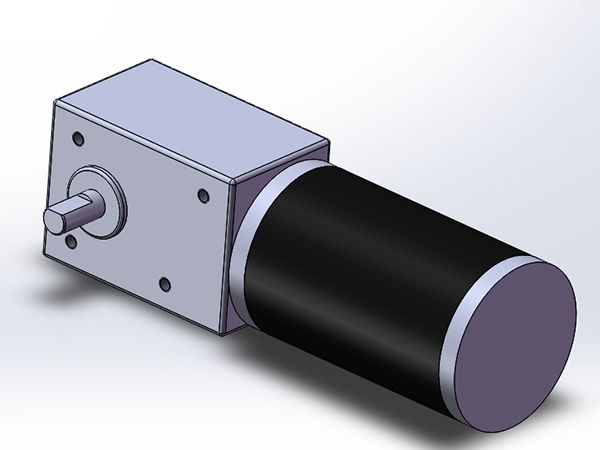

EM55ZYW01 Voltage: 24V DC
Torque: 5N.m
Speed: 80RPM
Power: 42W
Current: 9A
Working Duty: S2
Protection Class: IP53
Insulation Class: 40:1Inquiry
-
-
EM64ZYW01 Voltage: 12V DC
Torque: 34N.m
Speed: 15RPM
Power: 53W
Current: 15A
Working Duty: S2-1min
Protection Class: IP43
Insulation Class: 182:1Inquiry
-
-

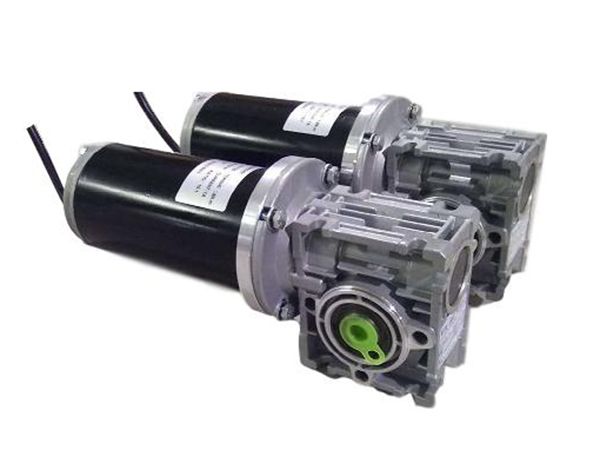

EM64ZYW02 Voltage: 120V DC
Torque: 1.6N.m
Speed: 250RPM
Power: 42W
Current: 1A
Working Duty: S2
Protection Class: IP54
Insulation Class: 10:1Inquiry
-
-

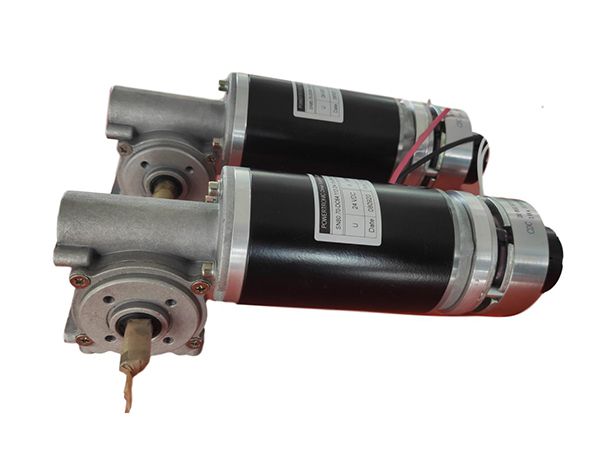

EM64ZYW03 Voltage: 24V DC
Torque: 1N.m
Speed: 150RPM
Power: 4PPR
Current: 2A
Working Duty: S2
Protection Class: IP5X
Insulation Class: 15:1Inquiry -
-

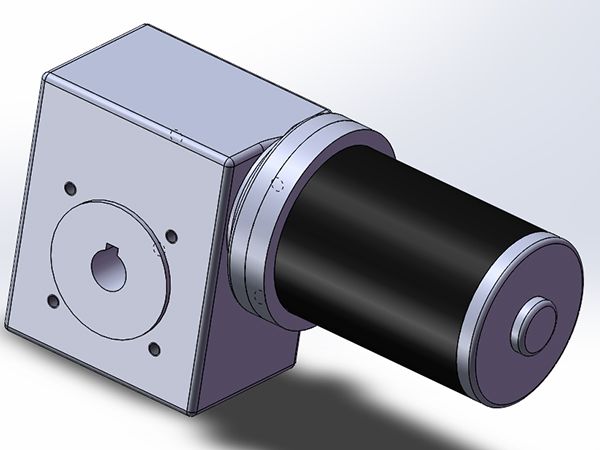

EM76ZYW01 Voltage: 24V DC
Torque: 50N.m
Speed: 15RPM
Power: 79W
Current: 18A
Working Duty: S2
Protection Class: IP53
Insulation Class: 40:1Inquiry
-
-

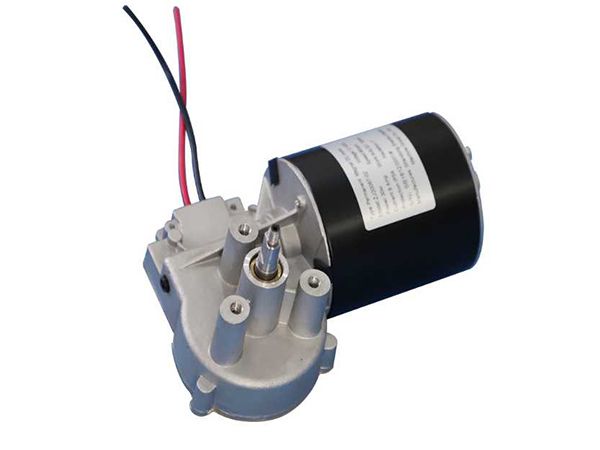

EM78ZYW01 Voltage: 12 DC
Torque: 30N.m
Speed: 84～100RPM
Power: 32W
Current: ≤8.5A
Working Duty: Intermittent
Protection Class: IP50
Insulation Class: 30N.mInquiry
-
-
EM80ZYW13 Voltage: 12DC
Torque: 10N.m
Speed: 110RPM
Power: 115W
Current: ≤15A
Working Duty: S3
Protection Class: IP43
Insulation Class: 15:1Inquiry
-
-

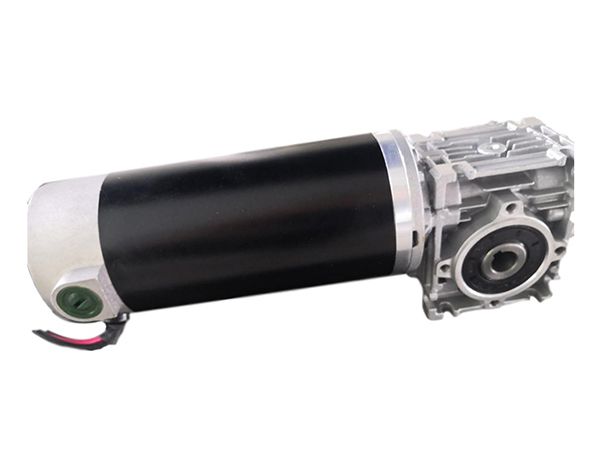

EM80ZYW14 Voltage: 24 DC
Torque: 20N.m
Speed: 60RPM
Power: 126W
Current: ≤15A
Working Duty: S2
Protection Class: IP43
Insulation Class: 25:1Inquiry
-
-
EM80ZYW15 Voltage: 24V
Speed: 3000RPM
Power: 600W
Current: 35A
Working Duty: S2-2.5MIN
Insulation Class: 90:1Inquiry
-
-
90ZYJ-125 Voltage: 12V/24V
Speed: 70RPM
Power: 350W
Working Duty: S2
Insulation Class: 50:1Inquiry
-
-
EM78ZYW01 Voltage: 12 DC
Torque: 30N.m
Speed: 84～100RPM
Power: 32W
Current: ≤8.5A
Working Duty: Intermittent
Protection Class: IP50
Insulation Class: 30N.mInquiry
-
-
Voltage: 24V DC
Torque: 320N.m
Speed: 8 RPM
Power: 270 W
Current: 50AWorking Duty: S2
Protection Class: IP55Inquiry
-
-
Voltage: 24V DC
Torque: 150N.m
Speed: 8 RPM
Power: 125 W
Current: 40AWorking Duty: S2
Protection Class: IP55Inquiry
-
-
Voltage: 24V DC
Torque: 15N.m
Speed: 300 RPM
Power: 475 W
Current: 47AWorking Duty: S2
Protection Class: IP65Inquiry
-
-

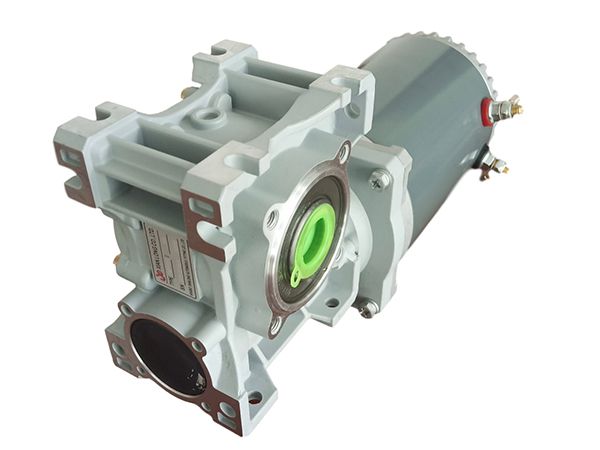

EM120ZYW01 Voltage: 24V
Speed: 1600RPM
Power: 800W
Current: 46A
Working Duty: S2-2.5MIN
Insulation Class: 50:1Inquiry
As an experienced electric motor manufacturer, Shanbo EM offers the best electric motion solutions to meet customers’ individual requirements. Our knowledge of motor manufacturing is based on our experience in production and delivery of over 1000 types of various custom electric motors and motion control products for automation equipment. Our team of enthusiastic people is continually developing innovative solutions in brushed motor and brushless motor technology to serve various applications in aerospace, automobile, industrial robot, automation, printing, packaging, medical devices, logistics, etc. We also provide an extensive line of industrial gearboxes and gearmotors including right angle gearboxes, helical gearboxes, and worm gearboxes. Our electric motor production plant comes fully equipped for manufacturing customized industrial motors to meet the demands on today’s industrial automation and motion control industry.InquiryOther Products
-
