Brushless DC Motor

Shanbo EM’s brushless DC motors are constructed using high grade rare-earth magnet and high quality ball bearing, offering greater flux density, higher efficiency, exceptional precision, faster speed, and lower noise level. These BLDC motors are typically suitable for applications where stable running and long lifespan are critical. When fitted with three Hall Effect sensors which are placed 120 degree apart from each other, or equipped with encoder, the brushless DC motor is applicable to precise positioning applications.

Motor Selection Range

  • Frame size: 30-180mm
  • Voltage: 7.2-230V
  • Speed: 100-50000rpm
  • Torque: 0.01-20N.m
  • Protection class: IP66
  • Operating temperature: -40°C – +120°C

Specifications

  • Brushless DC Motor

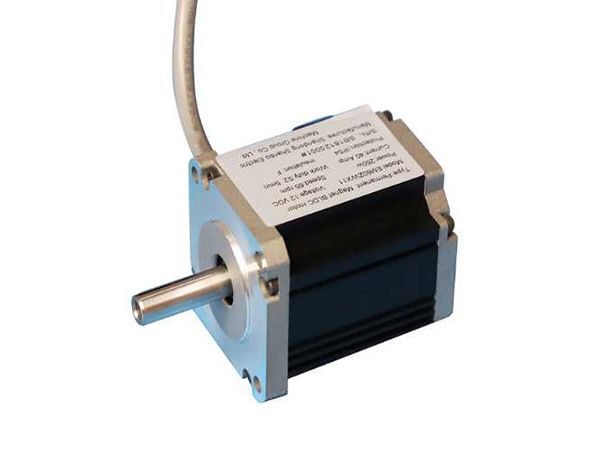

  • EM60ZWX11

    Voltage: 12V DC
    Torque: 39N.m
    Speed: 65RPM
    Power: 265W
    Current: 55A
    Working Duty: S2
    Protection Class: IP54
    Insulation Class: B
    Inquiry
  • Brushless DC Motor

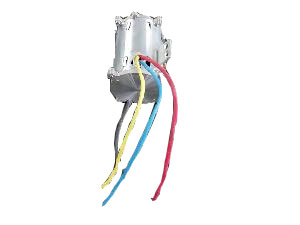

  • EM72ZWX02

    Voltage: 28 DC
    Torque: 0.35N.m
    Speed: 11000RPM
    Power: 400W
    Current: ≤20A
    Working Duty: S2-1min
    Protection Class: IP2X
    Insulation Class: B
    Inquiry
  • Brushless DC Motor
  • EM72ZWX03

    Voltage: 48 DC
    Torque: 0.35N.m
    Speed: 17000RPM
    Power: 620W
    Current: ≤18A
    Working Duty: S2-1min
    Protection Class: IP2X
    Insulation Class: B
    Inquiry
  • Brushless DC Motor
  • EM72ZWX04

    Voltage: 48 DC
    Torque: 0.19N.m
    Speed: 20000RPM
    Power: 400W
    Current: ≤12A
    Working Duty: S1
    Protection Class: IP2X
    Insulation Class: B
    Inquiry
  • Brushless DC Motor

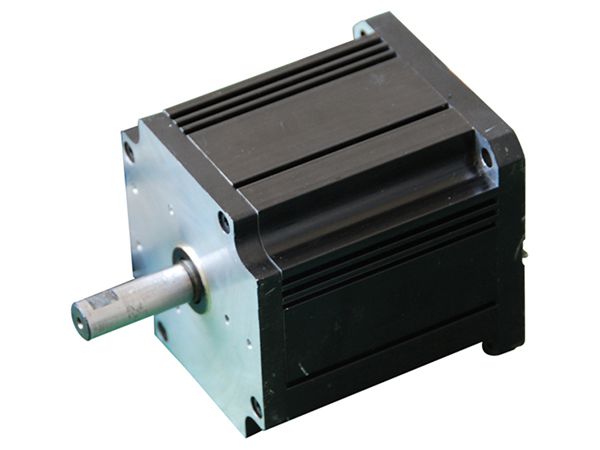

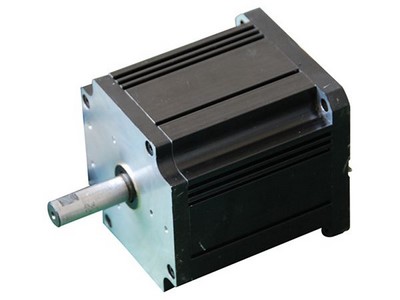

  • 80BL04

    Voltage: 12V DC
    Torque: 1N.m
    Speed: 3000r/min
    Current: <2.5A
    Working Duty: S1
    Protection Class: IP54
    Insulation Class: B
    Inquiry
  • Brushless DC Motor

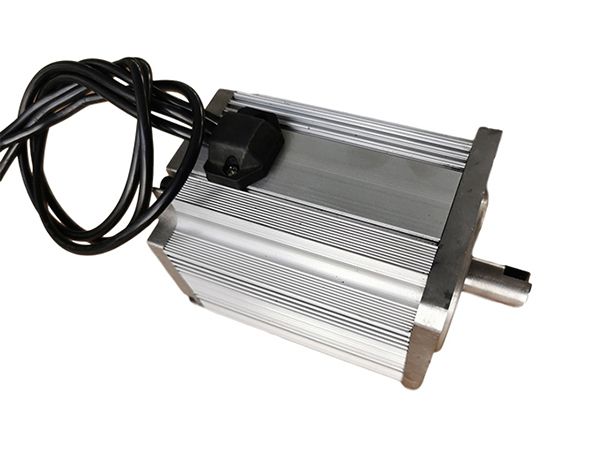

  • EM80ZWX20

    Voltage: 24 DC
    Torque: 2N.m
    Speed: 3800RPM
    Power: 800W
    Current: 42A
    Working Duty: S2
    Protection Class: IP54
    Insulation Class: B
    Inquiry
  • Brushless DC Motor

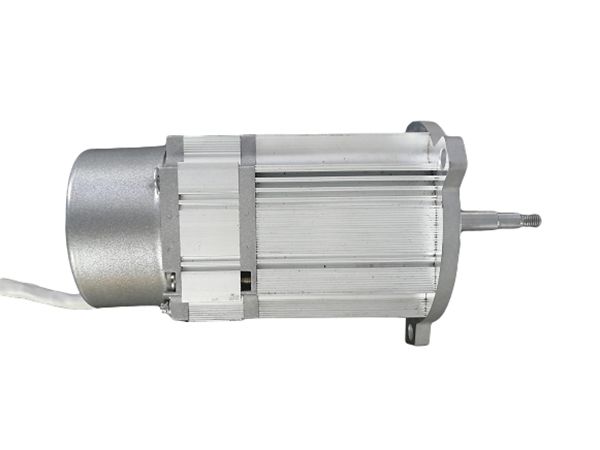

  • EM80ZWX25

    Voltage: 26 DC
    Torque: 0.4N.m
    Speed: 6000RPM
    Power: 250W
    Current: ≤12A
    Working Duty: S2-60min
    Protection Class: IP44
    Insulation Class: B
    Inquiry
  • Brushless DC Motor
  • EM80ZWX25A

    Voltage: 13 DC
    Torque: 0.4N.m
    Speed: 6000RPM
    Power: 250W
    Current: ≤25A
    Working Duty: S2-60min
    Protection Class: IP44
    Insulation Class: B
    Inquiry
  • Brushless DC Motor
  • EM80ZWX26

    Voltage: 48 DC
    Torque: 0.6N.m
    Speed: 3000RPM
    Power: 200W
    Current: ≤5.2A
    Working Duty: S2-60min
    Protection Class: IP44
    Insulation Class: B
    Inquiry
  • Brushless DC Motor

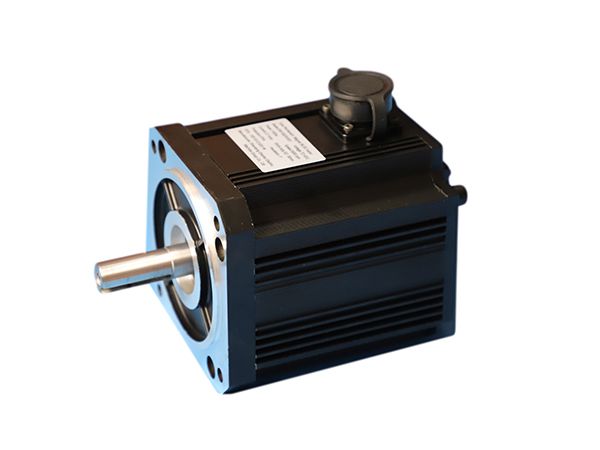

  • EM130ZWX52

    Voltage: 48V DC
    Torque: 3.2 N.m
    Speed: 3000RPM
    Power: 1000w
    Current: < 25A
    Working Duty: S2-10min
    Protection Class: IP54
    Insulation Class: B
    Inquiry

Beside, Shanbo EM is able to offer custom made brushless DC motors per customer’s specific needs. We can do the job with results satisfying or beyond the expectations of our customers. Required parameters from customer are as follows:

  • Shaft
  • Installation sizes
  • Performance data
  • Protection class
  • Application environment
  • Lead wire
  • Connectors
As an experienced electric motor manufacturer, Shanbo EM offers the best electric motion solutions to meet customers’ individual requirements. Our knowledge of motor manufacturing is based on our experience in production and delivery of over 1000 types of various custom electric motors and motion control products for automation equipment. Our team of enthusiastic people is continually developing innovative solutions in brushed motor and brushless motor technology to serve various applications in aerospace, automobile, industrial robot, automation, printing, packaging, medical devices, logistics, etc. We also provide an extensive line of industrial gearboxes and gearmotors including right angle gearboxes, helical gearboxes, and worm gearboxes. Our electric motor production plant comes fully equipped for manufacturing customized industrial motors to meet the demands on today’s industrial automation and motion control industry.
Inquiry
